Hi, Ahoj

" I'm happy to have you here! I'm Honza, and I am the sole author behind PiPBOT and various other 3D printable designs. Let me tell you, this thing is my best 3D creation yet. It's the most intricate thing I've ever envisioned, and I'm grateful that 3D printing has made it a reality. Thank you for joining me on this exciting journey of bringing PiPBOT and other creations to life. "

​

Stay tuned, as there's much more yet to be revealed!

Follow me on social media for the latest updates firsthand.

// MEET GOLIATH //

Introducing the latest version, "GOLIATH," (latest update 2.1) a formidable platform that serves as the foundation for various robot builds. GOLIATH is fully compatible with standard servo motor MG 995  or similar in size, making it accessible and easy for enthusiasts to bring their robot creations to life.

// WHAT IS PiPBOT //

PiPBOT stands for Print-in-Place roBOT. It serves as the foundation for various builds, offering an easy assembly, low production cost, and endless fun. The main platform is currently available as STL and STEP files. Additionally, for more customization options, a second version is provided, divided into separate parts so you can choose and play with your preferred colors. Let your imagination run wild with PiPBOT !

// PRINT-IN-PLACE //

The print-in-place technique is a fascinating 3D printing method that allows for the creation of objects in a fully assembled state, eliminating the need for any additional assembly steps after printing. In this process, all the intricate moving parts, hinges, gears, and other components are carefully designed to be printed in their final functional positions. This innovative approach saves considerable time and effort, as the object is ready for use straight out of the 3D printer.

​

* Print-in-Place is optional !

PiPBOT 2.1 Okr.png

// CUSTOMIZATION //

PiPBOT is your ultimate customizable robot buddy! You have the freedom to customize colors and materials, making it uniquely yours! It's a platform for building robots that's super easy to use for everyone. You can personalize it to tackle any task you throw its way.


// MODDING //

What sets PiPBOT apart is its adaptability through different attachments, allowing users to customize the model for a wide range of tasks and applications. Whether you're a tech geek or a total newbie, PiPBOT is here to make your robotic dreams a reality!

​

At this stage, there are already a few attachments available. I'm currently working on dozens of different model variants for common sensors, controllers, batteries, cameras, etc. So, you can expect a wide range of options to choose from in the near future!

DOWNLOAD

STL + STEP

Get your very own PiPBOT now for just $4.99 and enjoy all future updates without any additional cost!



All the money goes back into this project and its future development.

​


UPDATE AUGUST 2023

PiPBOT 2.1 //

After Beta 2.0 I have made some improvements. The core platform is well tested and works great. Takes less time to build customizable version. Main version of the model is printable as one print but there is always an option to print different parts separately in different colors and materials.

​

MODDING //

First set of basic attachments is available for rough builds.

There is a set of boxes mainly for batteries but it will fit other components as well. Each "MOD" has special universal clip so you can place it on different places on the main platform.

​

TUTORIALS //

I have made few assembly videos that can be used as a guide for your own builds. No screws or soldering!

PARTS LIST

PiPBOT2.1_Print-in-Place.ZIP

_PiPBOT 2.1 FULL .STL .STP

  • Main model fully assembled.

  • Separated parts for better slicer settings.​

  • Easy to assemble - just one fold

  • Under 1kg with right slicer settings

  • Print time @50mms 1day 17h

  • Compatible with servo MG995/996

  • Upgrades through special clip system

  • Hard to print - only for experienced users

  • Broken parts can NOT be replaced

  • Belt will be replaceable in next update!

PiPBOT2.1_Customizable.ZIP

PiPBOT 2.1 Customizable

  • 99.9% same as the main model

  • Customize colors and materials

  • Easy to build and print

  • Broken parts can be replaced

BELT-24 Circle_W.png
BELT 24 Circle

  • Basic belt

  • Print 2x

  • Perimeters 3

  • NO Infill

WHEEL 12T_W.png
WHEEL 12T

  • Wheel for belt

  • Print 4x

  • Perimeters 3

  • Infill Optional

MONOBODY 2.1

  • Base chassis that holds everything

  • Print 1x

  • Infill 15%

  • Perimeters 3

GEAR 16T Star_W.png
GEAR 16T StarHorn

  • For use with Servo StarHorn

  • Print 2x

  • Normal Settings

  • Infill 25%

WHEEL_LOCK W.png
WHEEL LOCK

  • Lock wheel on axis

  • Print 4x

  • Perimeters 10

  • or 100% Infill

ADDONS_1.0.ZIP

CASE 4xAA ROUND.png
Battery CASE 4xAA ROUND

  • Case 2x2 AA battery holder

  • Attach between wheels

  • Mount front for better traction

CASE 4xAA FLAT.png
Battery CASE 4xAA FLAT

  • Case for 4AA battery holder

  • holes for wires on all sides

BOX MAX-1.png
BOX MAX-1

  • Universal big case for anything

  • Big enough for Raspberry Pi

  • Arduino, Micro:Bit

CASE 2xAA BOX.png
Battery CASE 4xAA BOX

  • Case for 2x2 AA battery holder

  • 2 positions for mount

CASE 2xAAA THIN.png
Battery CASE 2xAAA THIN

  • Case for 2xAAA battery holder

BOX RC-1.png
BOX RC-1

  • Case for RC receiver

  • hole for switch and wires

  • mount for digital volt meter


WHAT ELSE DO YOU NEED?

Its so easy. All you need only few things to get it running and have fun.

2 servos, 1 battery holder, set of four AA batteries and RC controller.

​

THATS IT!

​

NO Screws, NO soldering, NO special skills, NO programming

Check the VIDEO section for some example builds.

2x SERVO

Servo MG995.jpg

  • Standard Servo MG 995 or 996

  • Continuous rotation 360

  • Working Voltage; 3.0V-7.2V

  • Torque 4.8V: 9.4kg / cm

  • Torque 6V: 11kg / cm

BATTERY HOLDER

Battery Holder 2x2AA.jpg

  • Normal 4xAA battery holder

  • Recommended set of 2

  • Front and rear for servos

  • Each motor will have own power

4xAA BATTERIES

4x AA batteries.jpg

  • Standard AA batteries

  • Alkaline batteries = 1.5V (6V)

  • Rechargeable = 1.2V (4.8V)

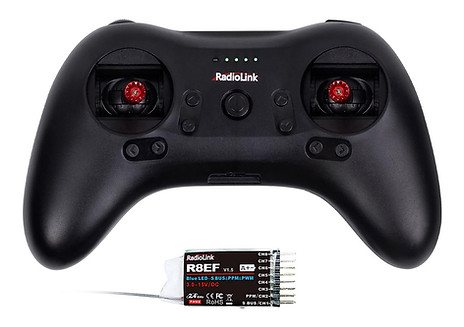

RC CONTROLLER + RECEIVER

  • RADIOLINK T8S

  • 8 Channels

  • Receiver R8EF RX

  • Rechargeable battery

  • Bluetooth App

  • Fastest way to control

  • Easy to assemble

  • Simple to use

  • Low cost​

  • FUN!!!

Radio control is just the basic level 1, but it's so much fun to overcome those initial obstacles.

The true purpose of this mechanical platform is to evolve and have the ability to alter its shape based on tasks or needs. A modular system of various attachments is in development, so you'll soon be able to attach a wide range of sensors, controllers, and additional servos to your build. PiPBOT will of course support common mini computers and controllers. Dedicated MODs are already in the making for Arduino, Micro:bit, ESP32, Raspberry.


COMING UP NEXT

I'm working on this now ;)

BBC Micro:bit

  • Great microcomputer

  • Wide support

  • Easy programming

  • Small

  • Low cost

DISTANCE SENSOR

  • Common in every robot

  • Cheap

BOARDS for Micro:bit

  • Printable cases for breakboards

  • Waveshare

  • Kiktronic

  • Octopus

FRONT SENSOR BAR

  • Front or rear use

  • 2 Changeable lights

  • Holes for 2x LED 8mm

  • Sonic Sensor

  • IR Reciever

USB LIGHTS

  • Super cheap

  • Bright enough

  • Universal connection

SERVO 180

  • MG 995 / 180deg

  • 3D mechanical arm

  • Rotation 180 degree


Hi again,

so you scrolled all the way here..

That's great ;) Seems that you like this project.

So here is a FREE GIFT for you to download.

First version of PiPBOT 1.1.

Just send me photo on Xwitter or Instagram ;)

IMG20230125152023 copy.jpg

PiPBOT 1.1 STL+STEP

Subscribe follow like and comment anything on my socials so I know you were here ;)

​

See you soon.

​

Honza
